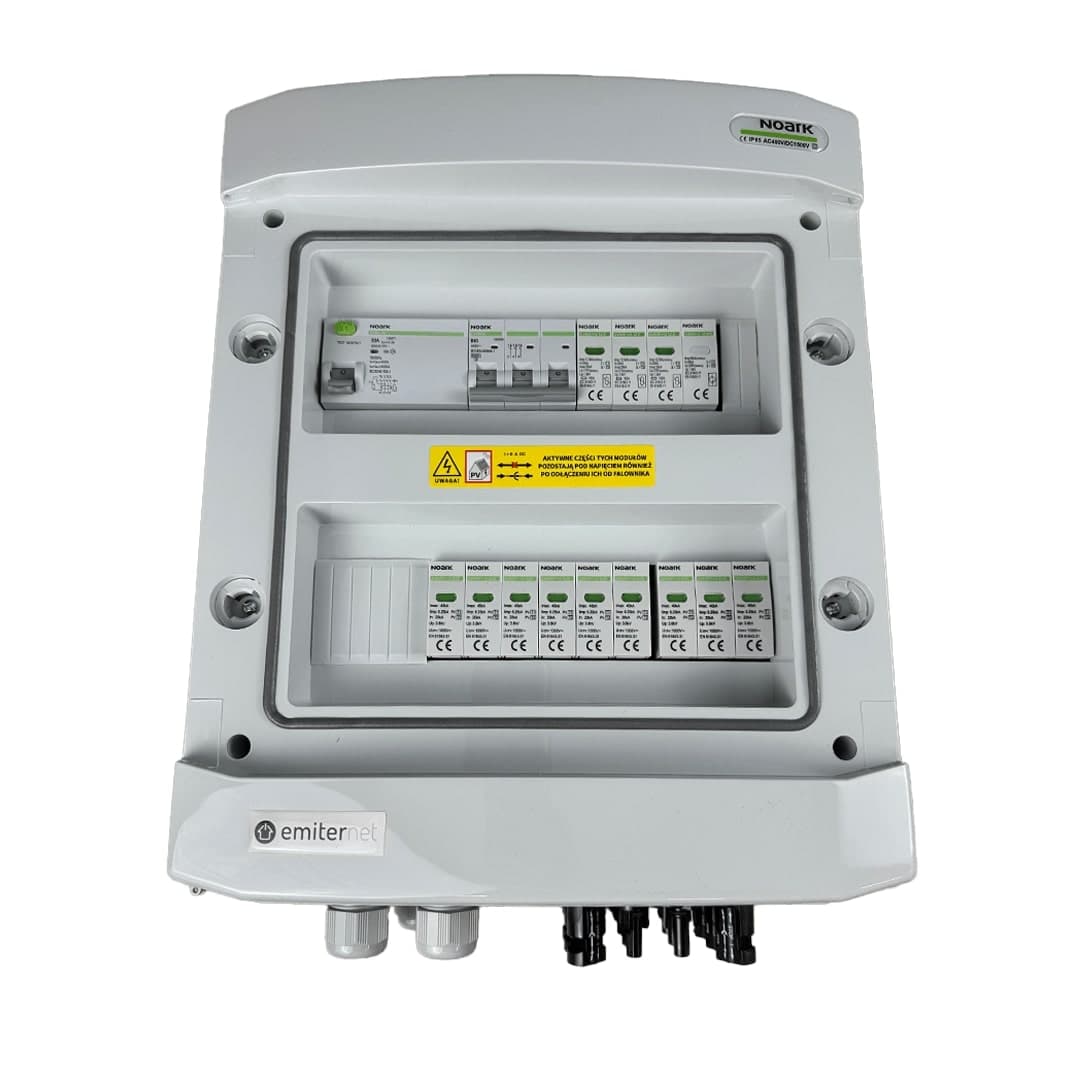

Emiter EM-1291N_DCAC DC/AC Combiner Box (3 MPPT, 63 A, IP65)

The Emiter DC/AC combiner box is a hermetic, IP65-rated device designed for three-phase systems with three MPPT inputs. It features Type 1+2 surge protective devices from Dehn for the DC side and Noark for the AC side, along with a Type A RCD.

The hermetic Emiter EM-1291N_DCAC combiner box provides comprehensive protection for photovoltaic systems on both the direct and alternating current sides. The IP65-rated enclosure protects the internal components against external factors. This model is designed to support three independent PV strings and three MPPTs. Dedicated protective devices are pre-installed inside, including a residual current device with 300 mA sensitivity.

Key features

• IP65-rated hermetic enclosure
• Built-in Dehn 1000 V Type 1+2 DC surge protective device
• Integrated Noark Type 1+2 AC surge protective device
• Supports three PV strings (3 x MPPT)
• Type A residual current device (RCD) (63 A, 300 mA)

Technical data

Brand	Emiter
SKU	EM-1291N_DCAC
Protection type	DC/AC
Number of phases	3
Number of MPPTs	3
SPD type	1+2
Maximum AC current	63 A
DC SPD voltage	1000 V
RCD	Type A (63 A, 300 mA)
Net depth	144 mm
