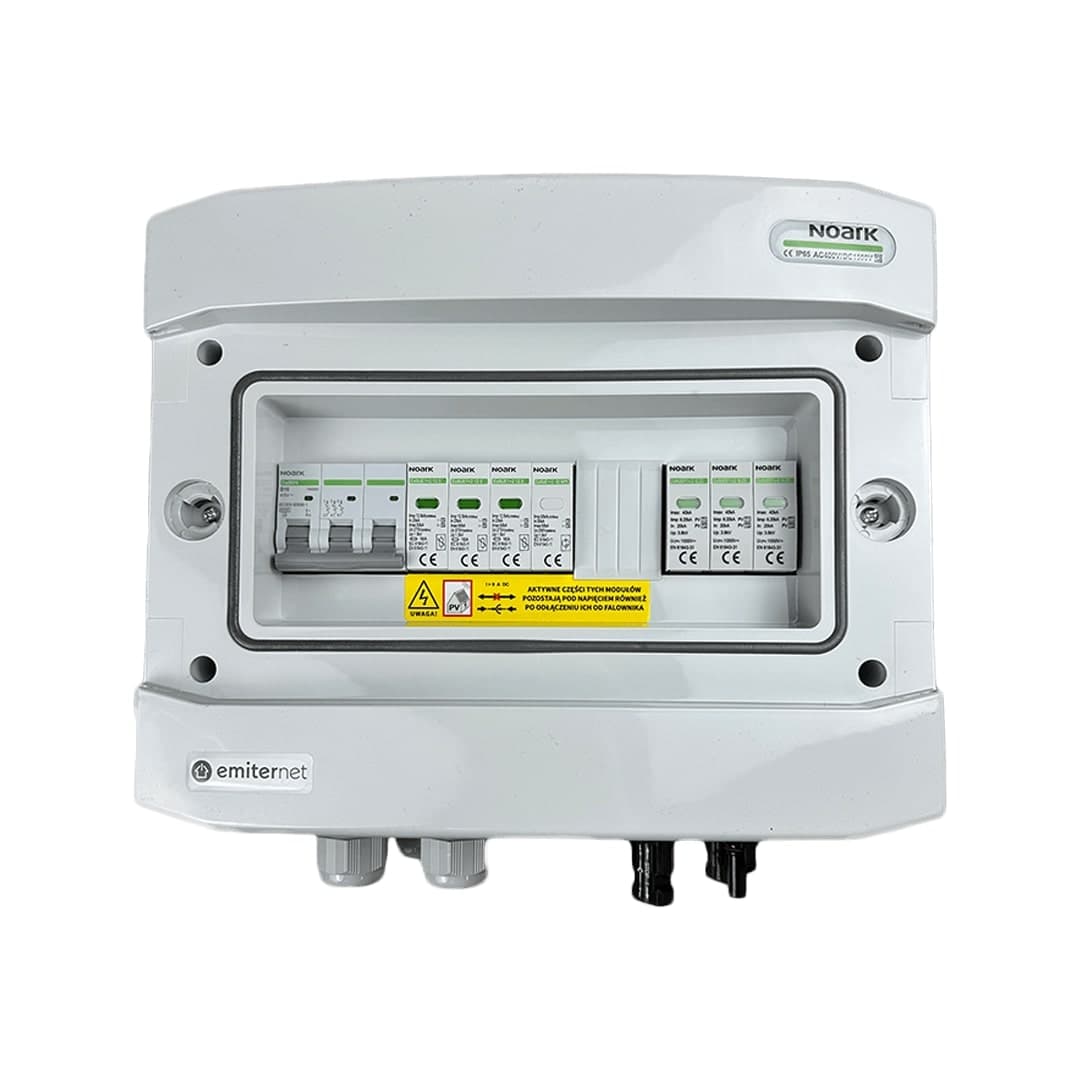

Emiter EM-90N_DCAC Hermetic DC/AC Distribution Board (1 MPPT, 16 A)

The hermetic DC/AC distribution board by Emiter, designated as EM-90N_DCAC with an IP65 protection rating, is designed to protect a single PV string within one MPPT input. It is factory-equipped with Noark type 1+2 surge protective devices (SPDs) for the direct current side up to 1000 V and the alternating current side, making it suitable for three-phase installations with a maximum current of 16 A.

The Emiter EM-90N_DCAC distribution board is a complete protection solution for three-phase photovoltaic installations. Its design allows for simultaneous system protection on both the DC and AC sides. Inside the enclosure, there are components designed to support a single string of solar panels. Complete sealing with an IP65 rating enables safe installation in demanding environmental conditions.

Key features

• Integrated system protection on the DC and AC sides
• Noark type 1+2 DC surge protective devices suitable for 1000 V
• Noark type 1+2 AC surge protective devices for three-phase installations
• Suitable for systems with a maximum AC current of 16 A
• Safe, hermetic enclosure with an IP65 protection rating

Technical data

Protection type	DC/AC
Number of phases	3
Maximum AC current	16 A
Surge arrester type	1+2
Number of MPPTs	1
Number of PV strings	1
Protection rating	IP65
Net depth	144 mm
