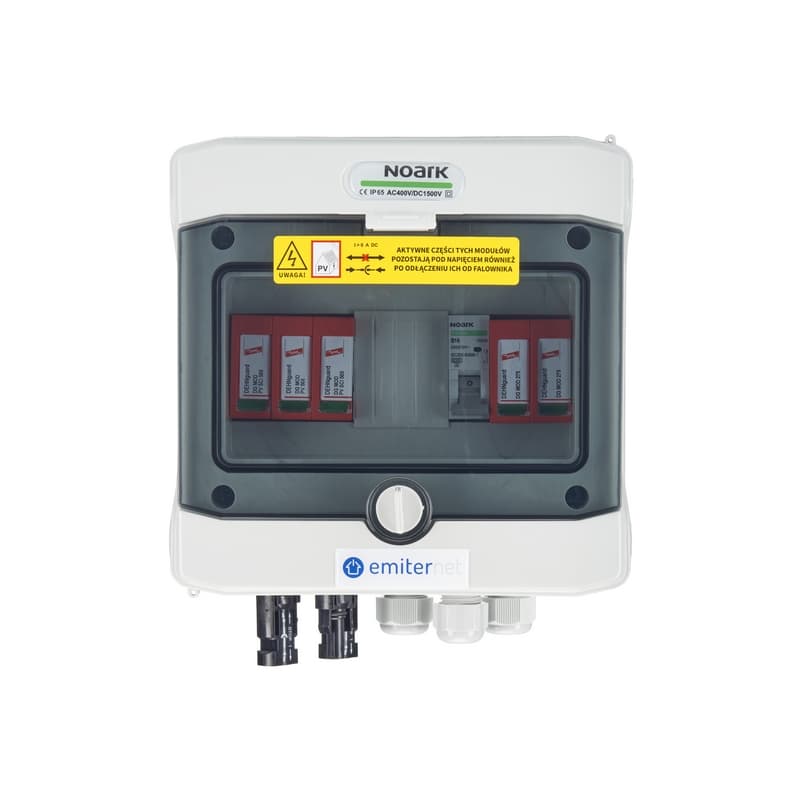

Emiter EM-1353_DCAC DC/AC Protection Box (1-phase, 1 MPPT, 20 A)

The Emiter DC/AC protection box in an IP65 hermetic enclosure is designed to protect single-phase photovoltaic installations. The device features Dehn 1000 V type 2 surge arresters and supports one PV string on a single MPPT, with a maximum AC current of 20 A.

The Emiter EM-1353_DCAC DC/AC protection box is designed to protect circuits in photovoltaic installations. The applied IP65 hermetic enclosure effectively secures the internal equipment against external factors. The product is factory-equipped with Dehn DC and AC surge arresters, classified as type 2.

Key features

• Comprehensive protection for DC and AC circuits (Dehn type 2 surge arresters)
• Configuration for a single PV string and one MPPT input
• Designed for operation in single-phase systems with a maximum AC current of up to 20 A
• Increased resistance to dust and moisture thanks to the IP65 hermetic enclosure

Technical data

Protection type	DCAC
Number of phases	1
Number of MPPTs	1
Maximum AC current	20 A
Arrester type	2
Protection degree	IP65
Net depth	120 mm
