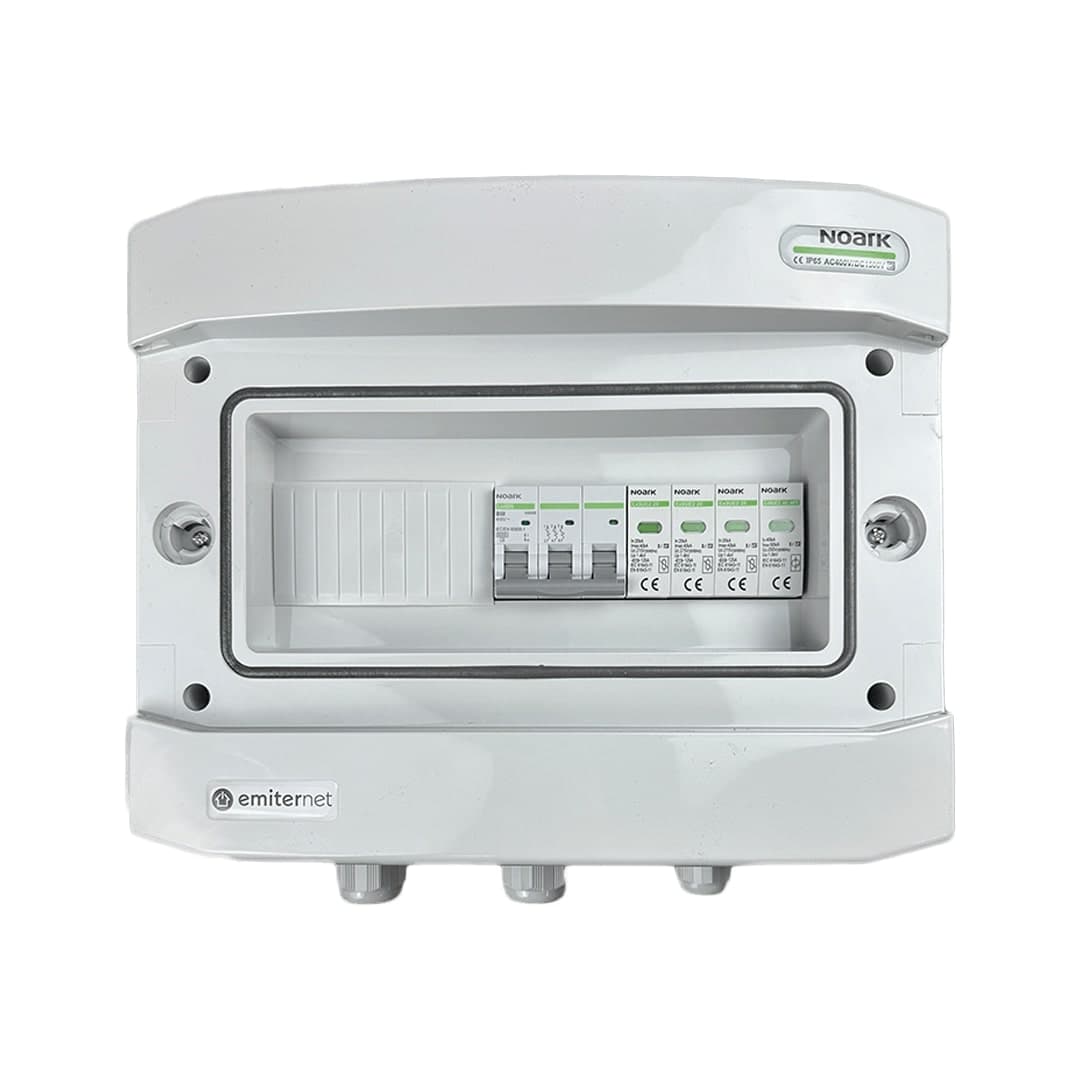

Hermetic AC distribution board Emiter EM-212N_AC (50 A, 3-phase)

The Emiter EM-212N_AC AC distribution board is a ready-to-connect device designed to protect PV inverters in grounded and isolated installations. The product features an IP65 protection rating, UV resistance, and includes integrated Noark protection in the form of a 50 A miniature circuit breaker and a Type 2 surge protection device.

The Emiter EM-212N_AC surface-mounted AC distribution board is designed to protect the AC side of photovoltaic installations against short circuits, overloads, and indirect lightning strikes. The PHS 12 T modular enclosure offers 12 modules and is made of halogen-free, UV-resistant plastic. Thanks to the IP65 protection rating, the distribution board is suitable for outdoor installation. The set is pre-assembled and ready to connect, which speeds up the installer's work on site.

Key features

• Integrated 3-phase Noark B50A miniature circuit breaker with B curve.
• Noark Type 2 surge protection device protecting against indirect lightning strikes.
• Hermetic enclosure with IP65 protection rating and IK08 mechanical resistance.
• Made of halogen-free, UV-resistant plastic.
• 5-year manufacturer's warranty.

Technical data

Number of phases	3
Protection type	AC
Maximum AC current	50 A
Surge protection device type	Type 2
Miniature circuit breaker	Noark Ex9BN 3P B50
Number of modules	12
Rated insulation voltage Ui	400 V AC / 1500 V DC
Enclosure protection rating	IP65
Mechanical resistance	IK08
Protection class	II
Enclosure dimensions (L x W x H)	144 x 259 x 325 mm
Operating temperature	-25 °C to +60 °C
