Grenton RSH-201-D-01 Roller Shutter Output Module (1 output, TF-Bus)

Manufacturer: GrentonSKU: GRE/RSH-201-D-01

371,88 zł net

≈ 85 € (settled in PLN, NBP rate of 2026-10-15)

Net price for businesses — after logging in

Made to order

Fast delivery

Shipping from the Solmix warehouse

Manufacturer's warranty

Original, new product

VAT invoice

For every order

14-day returns

No reason required

Category: Inteligentny dom
Manufacturer: Grenton
SKU: GRE/RSH-201-D-01
Availability: Made to order

Back to catalog

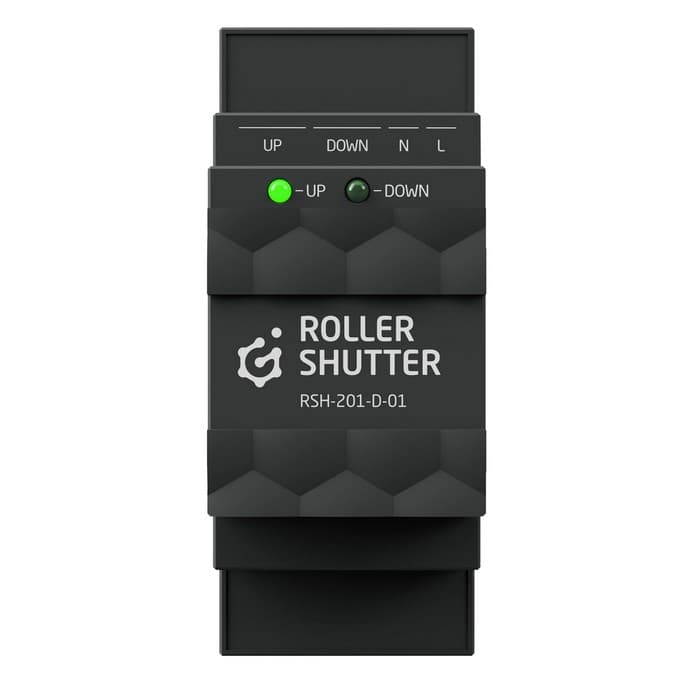

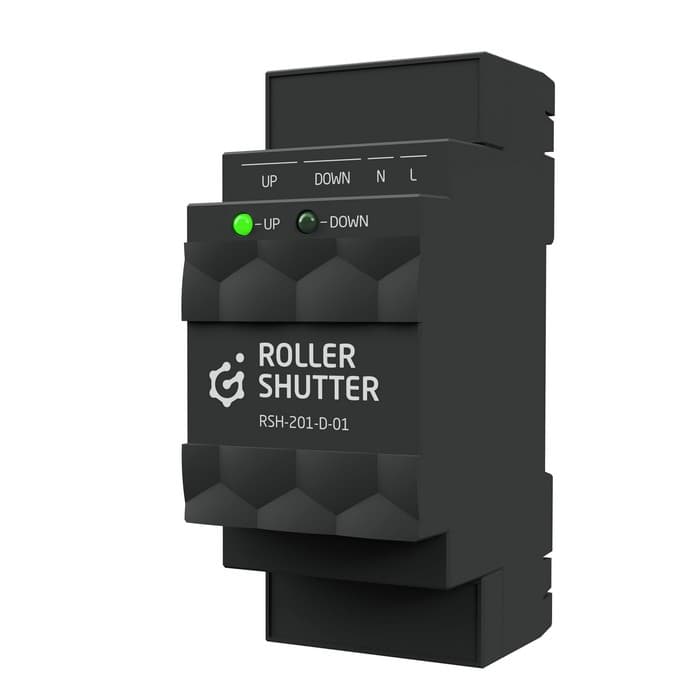

The Grenton RSH-201-D-01 roller shutter output module is a device designed to control a single roller shutter drive via the TF-Bus. The component is mounted on a standard DIN rail and supports loads with a maximum power of 3600 VA.

The Grenton RSH-201-D-01 roller shutter output module enables precise control of a single roller shutter drive in building automation systems. The device communicates with the master unit via the TF-Bus and is powered by 24 V DC. The product is adapted for direct installation in a distribution board on a TH 35 DIN rail. The design allows for the connection of wires with a maximum cross-section of 2.5 mm².

Key features

Support for one roller shutter drive (load voltage 230 V AC or 24 V DC)
Maximum switching power for AC1 category of 3600 VA
Integrated system communication via TF-Bus
Housing width equivalent to 2 standard installation modules
Built-in normally open (NO) relay contacts

Technical data

Device power supply	24 V DC
Maximum power consumption	1.2 W
Rated load voltage	230 V AC or 24 V DC
Maximum switching power (AC1)	3600 VA
Relay type	NO
Maximum wire cross-section	2.5 mm²
Mounting method	DIN-3 / TH 35 / TS 35 rail
Operating temperature	0 to +45 °C
Dimensions (H / W / D)	58 / 36 / 90 mm
Net thickness	40 mm
Weight	165 g
