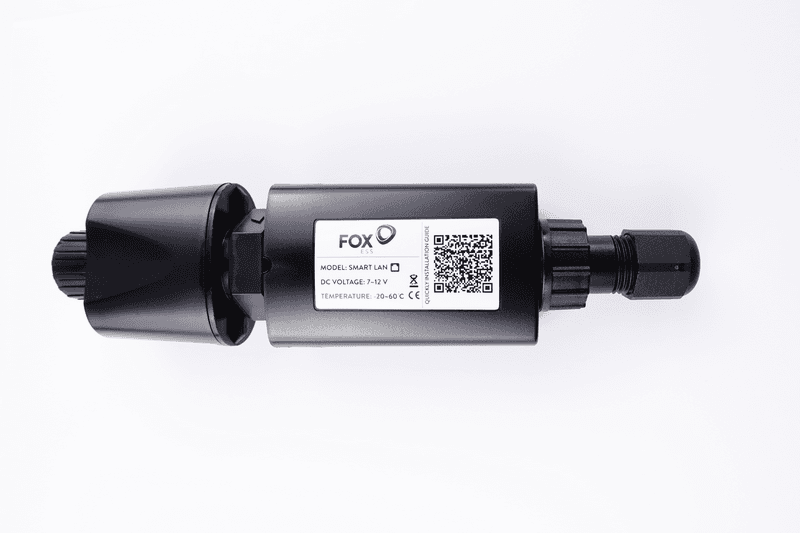

FoxESS Smart L 3.0 LAN Communication Module (IP65, RS485, USB)

The FoxESS Smart L 3.0 LAN communication module provides a stable connection between inverters and the FoxESS Cloud server in areas without wireless network coverage. The device allows installers and users to perform remote monitoring, diagnostics, and setting adjustments of the PV installation.

The FoxESS Smart L 3.0 internet module is designed for wired LAN communication between the inverter and the FoxESS Cloud platform. The device is compatible with T-G3 series inverters via a USB connector, and thanks to the included adapter, it also supports the T, F, and S series. Using the module allows for continuous monitoring of system parameters, collecting historical data, and quick response to diagnostic notifications.

Key features

• Plug and Play installation via USB connector
• High IP65 protection rating against external factors
• Built-in LED indicators signaling data reception from the inverter and operating status
• UL94V-0 flame retardant rating and F1 UV resistance

Technical data

Dimensions	100.0 x 49.0 x 28.0 mm
Weight	55 g
Input voltage	7-12 V DC
Maximum power consumption	1 W
Connection speed	10M / 100M
Interface	RS485
Connector	USB
Operating temperature	-20°C - +60°C
Protection class	IP65
