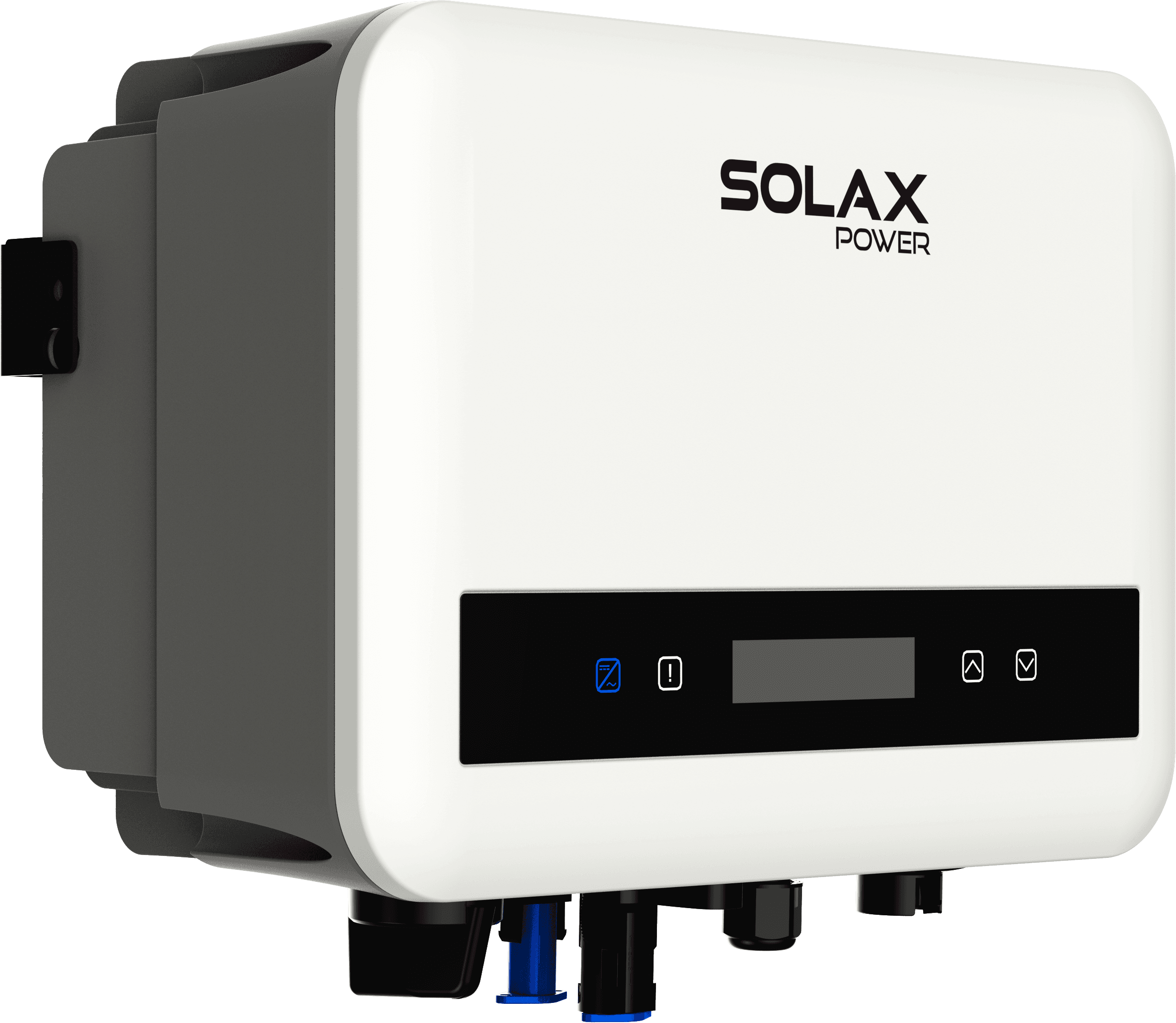

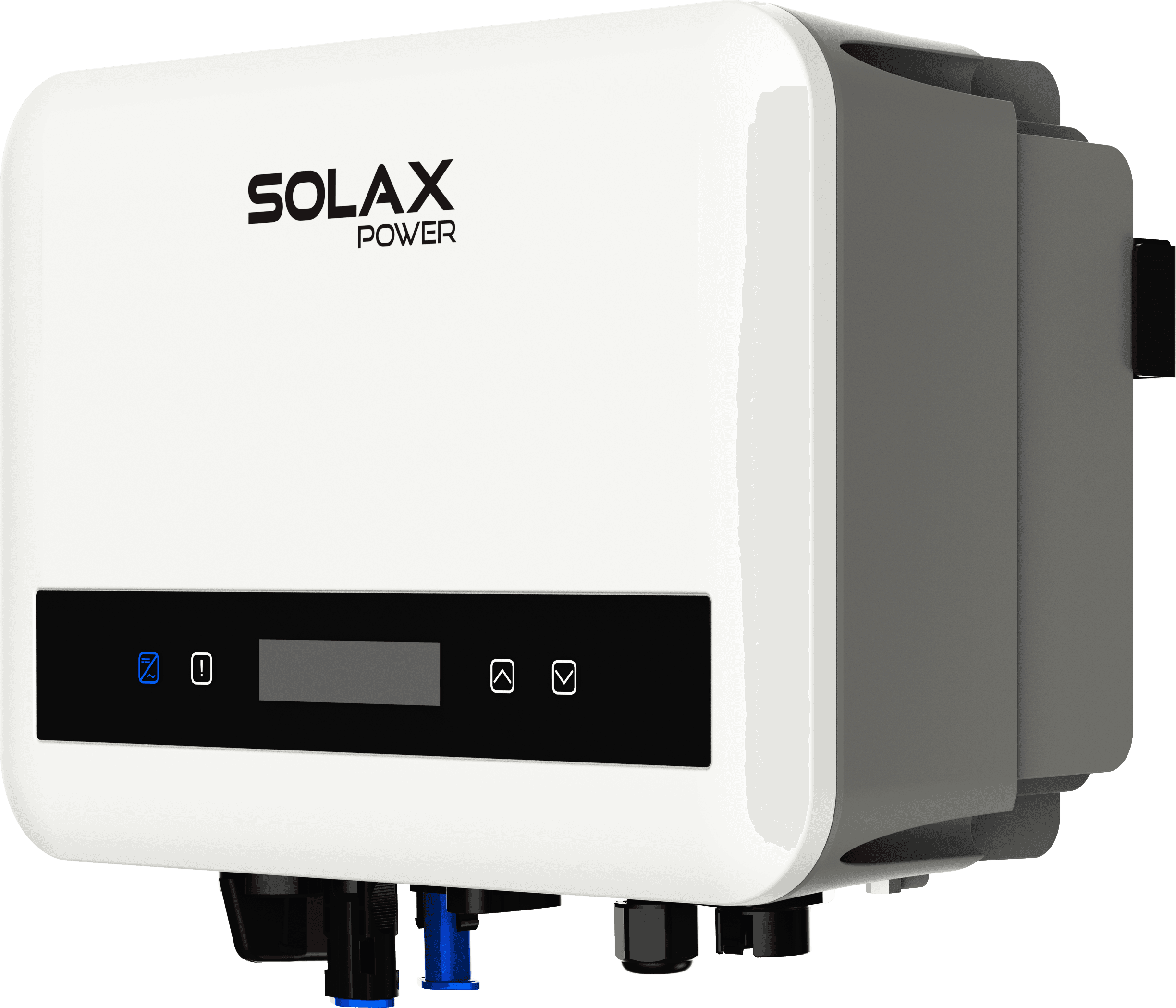

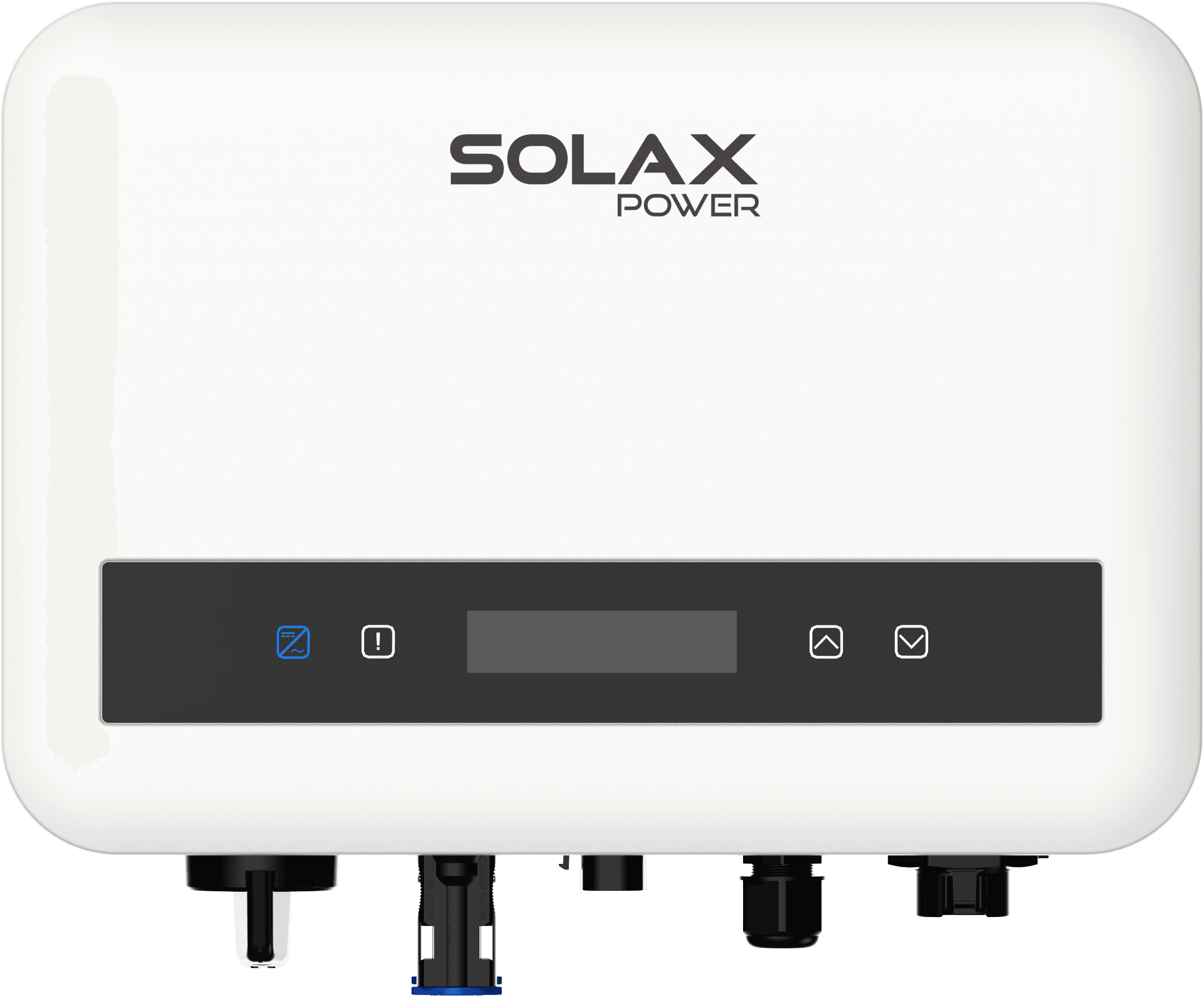

Solax X1-MINI-3.0K-G4 Grid-tied Inverter (3 kW, 1-Phase)

The single-phase Solax X1-MINI-3.0K-G4 grid-tied inverter features a rated output power of 3000 W and is equipped with a single Maximum Power Point Tracker (MPPT). The device boasts an IP66 protection rating and supports DC input oversizing up to 200%.

The Solax X1-MINI-3.0K-G4 grid-tied inverter is a single-phase on-grid device designed for photovoltaic installations. The rated AC output power is 3000 W, and the maximum PV input power can reach 6000 Wp. This model features a low startup voltage of 50 V and includes a global MPP scanning function. The design ensures an efficiency of up to 98% and relies on natural cooling.

Key Features

• One MPP tracker with a voltage range of 40-550 V
• Maximum DC input current of 16 A
• DC input oversizing capability up to 200%
• Integrated anti-islanding protection and grid monitoring
• Built-in export control function

Technical Specifications

Rated AC output power	3000 W
Maximum AC apparent power	3300 VA
Number of phases	1
Number of MPPT trackers	1
Maximum PV input voltage	550 V
Startup voltage	50 V
MPPT voltage range	40-550 V
Maximum AC output current	15 A
Maximum efficiency	98%
Protection rating	IP66
Net depth	120 mm
